Exploring the ZWO EFW: A Compact and Efficient Filter Wheel for Astrophotography
For astrophotographers looking to streamline their workflow and capture stunning multi-filter images, the ZWO EFW (Electronic Filter Wheel) is a game-changer. Whether you’re imaging nebulae in narrowband or shooting in LRGB, a reliable filter wheel can make all the difference in maximizing efficiency and reducing the hassle of manually changing filters. The ZWO EFW 5 x 1.25-inch is compact, lightweight, and offers automated filter switching, making it an essential tool for astrophotographers aiming to take their imaging to the next level.
In this blog post, I’ll explore the key features, setup, and performance of the ZWO EFW, and discuss why it’s a fantastic choice for anyone looking to upgrade their astrophotography equipment. I’ve only used the 5 x 1,25 inch filter wheel. That is why I will only focus on this particular filter wheel.
Why Use an Electronic Filter Wheel?
Before diving into the specifics of the ZWO EFW, it’s important to understand why filter wheels are indispensable for astrophotographers, especially those using monochrome cameras or those shooting in narrowband.
Efficiency and Automation
Changing filters manually can be time-consuming and disruptive to your imaging session. An electronic filter wheelautomates the process, allowing you to switch between filters with ease from your imaging software. This means less time handling your equipment in the dark and more time capturing data.
Precision and Consistency
Electronic filter wheels ensure that the filters are precisely aligned in the optical path every time. This consistency leads to better image quality, avoiding any potential misalignment that might occur when swapping filters manually.
Multi-Filter Imaging
For astrophotographers shooting in LRGB (Luminance, Red, Green, Blue) or narrowband (Hα, OIII, SII), using a filter wheel allows you to seamlessly switch between filters during long imaging sessions. This is especially important when shooting multiple frames across different filters, as you can automate the process and let your rig do the work while you focus on planning your next target or enjoying the night sky.
Key Features of the ZWO EFW 5 x 1.25-inch
The ZWO EFW 5 x 1.25-inch is a compact, lightweight electronic filter wheel designed to hold five 1.25-inch filters. Here’s why it stands out:
1. Compact and Lightweight Design
Weighing in at only 300 grams, the ZWO EFW is lightweight and easy to integrate into most astrophotography setups. Its slim profile also minimizes the distance between the camera sensor and filters, reducing vignetting and ensuring a more uniform image across the sensor.
Despite its small size, the EFW is built with sturdy, durable materials that can withstand the rigors of long astrophotography sessions, often conducted in cold or humid conditions.
2. Easy Filter Installation

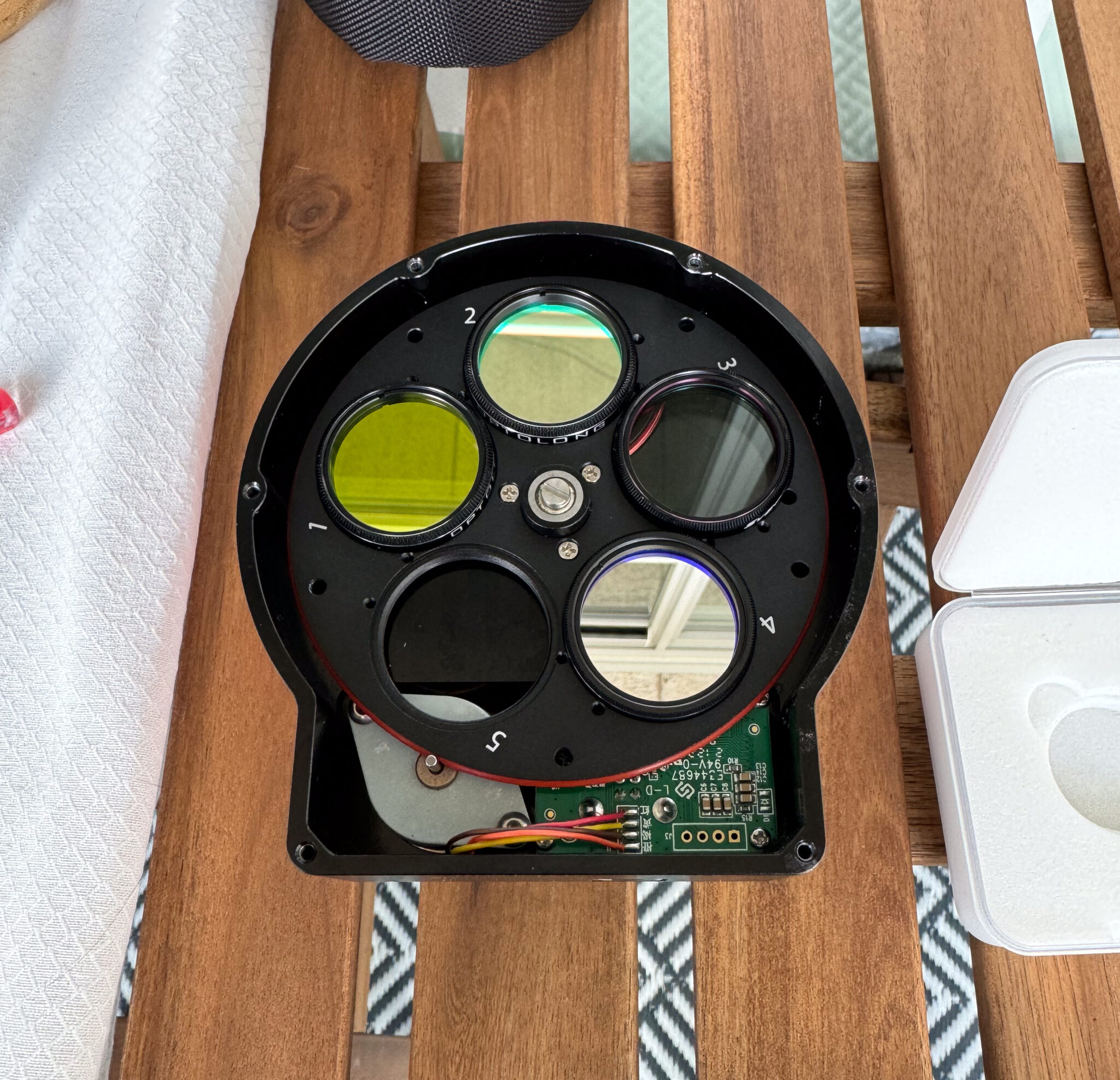

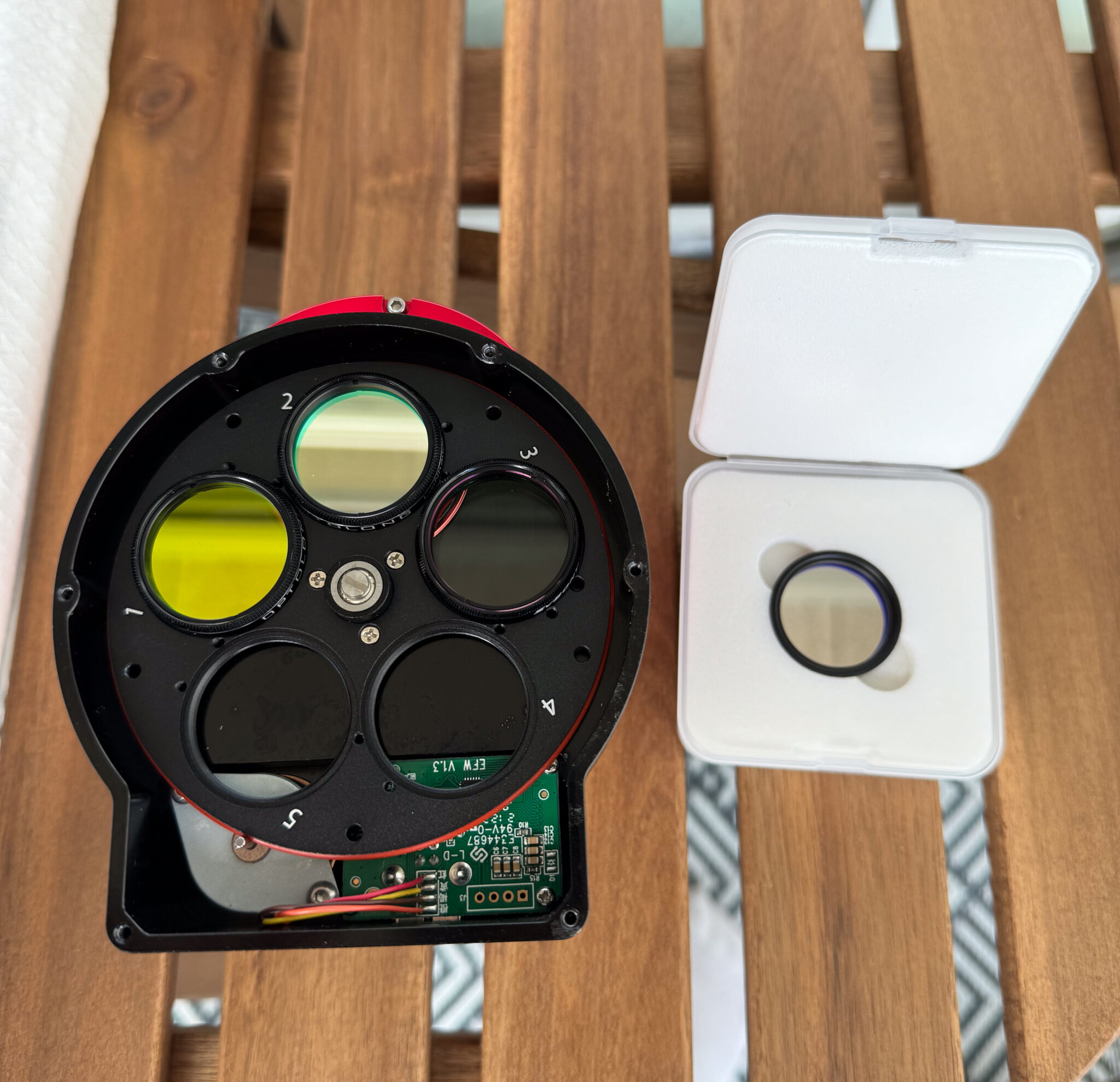

The filter wheel can house five 1.25-inch filters. Installing the filters is a straightforward process. You simply unscrew the front plate, insert the filters into the dedicated slots, and screw the plate back on. For astrophotographers who use multiple filters (e.g., LRGB and narrowband), this setup is ideal, offering flexibility for different imaging styles.
One key benefit of this design is that it accommodates standard 1.25-inch filters, which are widely available and often more affordable than larger filters. This makes it an excellent option for astrophotographers who want to maximize performance without breaking the bank.
3. Seamless Integration with ZWO Cameras
ZWO’s product line is designed to work together seamlessly, and the EFW 5 x 1.25-inch is no exception. It integrates perfectly with ZWO’s ASI camera series. The filter wheel can be connected directly to cameras like the ZWO ASI1600MM or ZWO ASI533MC PRO, without the need for additional adapters.
ZWO’s imaging software, ASICap, and other popular programs like SharpCap and NINA, allow full control over the filter wheel. Switching filters is automated and can be integrated into your imaging routine, ensuring that you never have to touch your equipment once the session begins.
4. USB-Powered and Easy to Operate
The ZWO EFW is USB-powered, which simplifies cable management during long imaging sessions. Simply plug the EFW into your computer or a power hub, and it’s ready to go. The wheel uses a small, stepper motor to rotate the filters, providing precise, smooth transitions between each filter position.
With its low power consumption and reliable motor, the ZWO EFW can operate all night without issue, and it requires very little maintenance, making it a true set-it-and-forget-it piece of gear.
5. Versatile Filter Control
The ZWO EFW 5 x 1.25-inch allows you to switch filters in milliseconds, providing quick and accurate control over your imaging workflow. Whether you’re imaging in narrowband or using LRGB filters, the EFW ensures you can rapidly move between filters, automating the process for long imaging sessions.
For astrophotographers interested in multi-band imaging, the EFW is essential for gathering data across different spectra in a single session. This is especially helpful when shooting deep-sky objects like nebulae, galaxies, or star clusters where multiple filter sets are needed to capture all the details.
Setting Up the ZWO EFW 5 x 1.25-inch
Setting up the ZWO EFW is quick and simple, especially if you’re already using a ZWO ASI camera. Here’s a brief overview of the setup process:
Install Filters: Unscrew the front plate of the filter wheel, carefully insert your filters into the designated slots, and secure the plate back on. Make sure each filter is clean and properly seated.

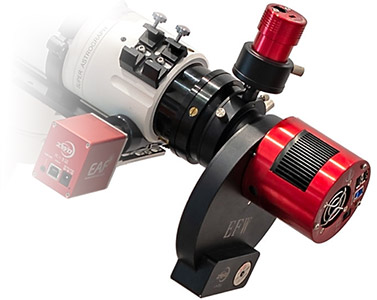

Connect to Camera: Attach the filter wheel to your ZWO camera. The EFW is designed to screw directly onto the camera’s nosepiece, ensuring a secure and precise connection.
Connect via USB: Plug the USB cable from the filter wheel into your computer or power hub. The EFW is powered through this USB connection, so no external power supply is needed.
Configure Software: In your preferred imaging software (ASICap, SharpCap, or NINA), configure the EFW to match the order of your installed filters. Most software will automatically detect the EFW, allowing you to switch filters with just a click.
Start Imaging: Once set up, you can seamlessly automate filter changes during your imaging session, ensuring efficient and smooth transitions between LRGB or narrowband filters.
Performance in the Field
In practice, the ZWO EFW 5 x 1.25-inch performs exceptionally well. It provides fast, reliable filter changes and integrates smoothly with ZWO cameras and imaging software. During long imaging sessions, the EFW ensures minimal downtime between exposures, which is particularly important for multi-filter projects.
In my experience, using the ZWO EFW has made my astrophotography workflow much more efficient. I can plan an entire night of imaging—switching between Hα, OIII, and SII filters for narrowband targets—without needing to physically touch my rig. This has drastically improved the quality and consistency of my data, especially when shooting complex deep-sky objects like nebulae or galaxies.
Conclusion: A Must-Have for Multi-Filter Astrophotography
The ZWO EFW 5 x 1.25-inch is a well-designed, efficient, and cost-effective solution for astrophotographers who want to automate their filter switching process. Its lightweight design, ease of use, and seamless integration with ZWO cameras make it an invaluable tool for those shooting in LRGB or narrowband.
If you’re looking to streamline your imaging workflow and improve the quality of your data collection, the ZWO EFW is a must-have addition to your astrophotography gear. Its reliable performance, affordable price point, and ease of integration make it the perfect choice for both beginner and experienced astrophotographers alike.
I hope you enjoyed this blog and images about ZWO Electronic Filter Wheel
Happy stargazing! – Jimmy Keetman
