The Imaging Process

Astrophotography, especially deep-sky imaging, requires significant time and effort, and capturing NGC7293 –  The Helix Nebula was no exception. Over several nights, I managed to accumulate a total integration time of over 17 hours—208 frames, each exposed for 300 seconds. Why such long exposures? The Helix Nebula is relatively faint, and to capture the subtle detail of its outer rings and gaseous tendrils, long exposure times are essential.

Each 5-minute exposure allowed me to gather as much light as possible, revealing the faintest structures of the nebula. Stacking 208 images was necessary to reduce noise and increase the signal-to-noise ratio. With such a faint target, every bit of signal matters, and more exposure time meant more data to work with during post-processing.

Calibration and Stacking

Once I had my light frames, I also captured calibration frames: dark frames to account for thermal noise, flat frames to correct for vignetting, and bias frames for readout noise. After gathering all my data, I used stacking software to align and combine the images. The stacking process dramatically reduced noise and allowed the delicate details of the Helix Nebula to shine through.

Processing the Data

Post-processing is where the magic happens in astrophotography. After stacking the images, I imported the stacked image into processing software to bring out the colors, contrast, and fine structures hidden within the data. The Helix Nebula contains intricate layers of ionized gas, with the central region glowing brightly in OIII emissions, while the outer layers are enriched with Hα emissions, giving it that distinctive blue and red hue.

With the help of the SV220 dual-band filter, I was able to isolate and enhance these colors. Careful attention was given to balance the light pollution removal with preserving the natural look of the nebula. The final image revealed the Helix’s iconic ring structure, with the central star clearly visible, surrounded by the colorful, gaseous remnants of its former life as a sun-like star.

The Final Result

After more than 17 hours of integration and several nights of effort, the final image of the Helix Nebula is a breathtaking reminder of the beauty of our universe. The central star, now a white dwarf, stands out against the vivid colors of the surrounding gas and dust. The outer layers of the nebula appear as faint, wispy strands, creating a truly ethereal appearance.

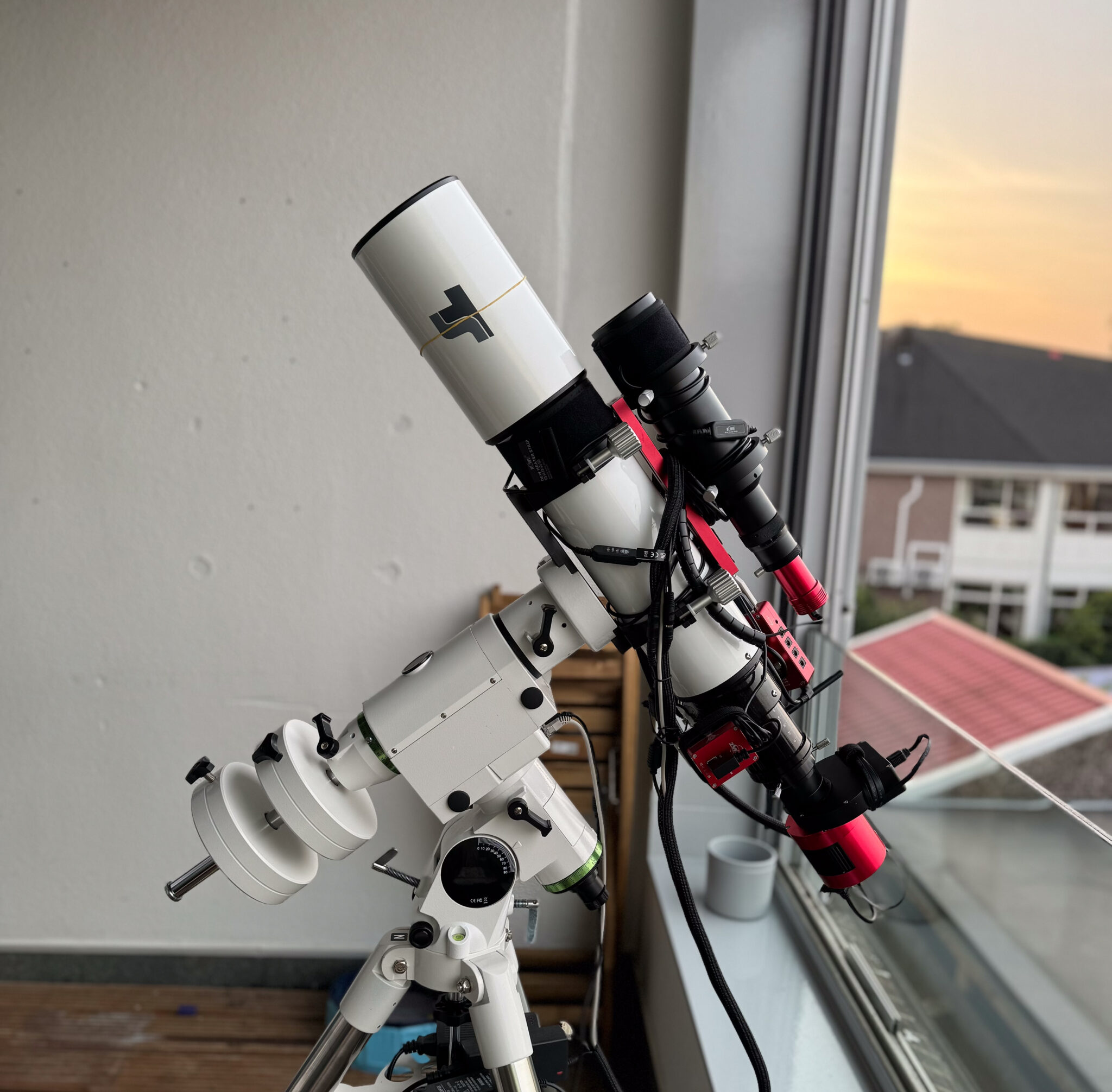

The long exposure time, combined with the precision of the TS-Optics 102mm refractor, the high sensitivity of the ZWO ASI 533MC PRO, and the filtering capabilities of the SVBony SV220, allowed me to capture details that would otherwise remain hidden to the human eye.

Conclusion

The Helix Nebula (NGC 7293) is not only a remarkable object to observe but also a rewarding challenge for astrophotographers. The complexity of its structure, combined with its distance and faintness, make it a compelling target. Through the use of the TS-Optics 102mm F7 telescope, ZWO ASI 533MC PRO camera, and SVBony SV220 filter, I was able to bring out the stunning beauty of this deep-sky wonder.

If you’re an astrophotographer, I encourage you to give the Helix Nebula a try. It may take time and patience, but the result is truly awe-inspiring—a glimpse into the life cycle of stars and the vastness of our universe.
